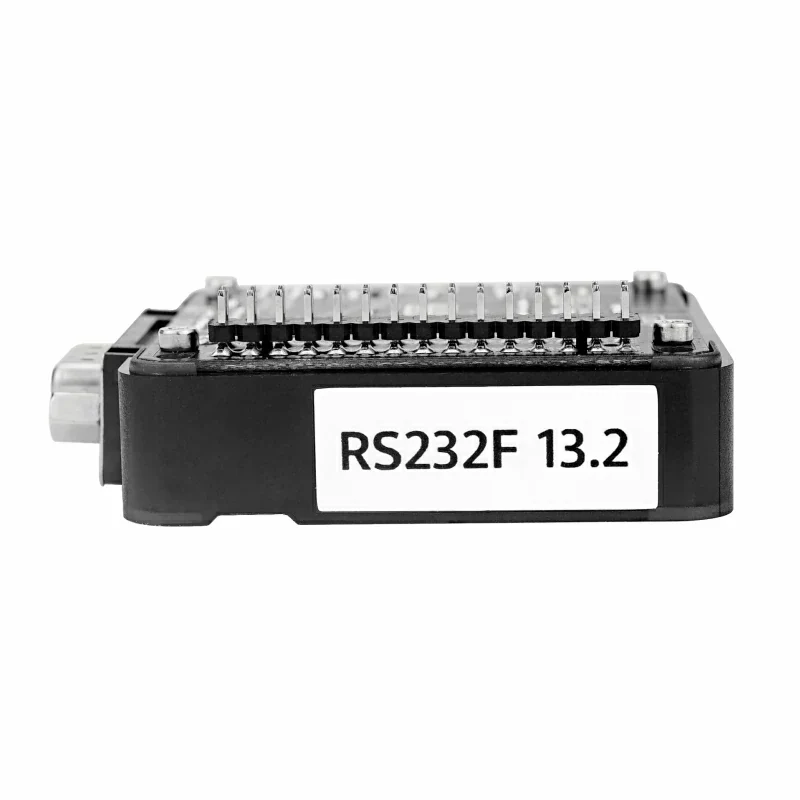

RS232 Module 13.2 with DB9 Female Connector
Description

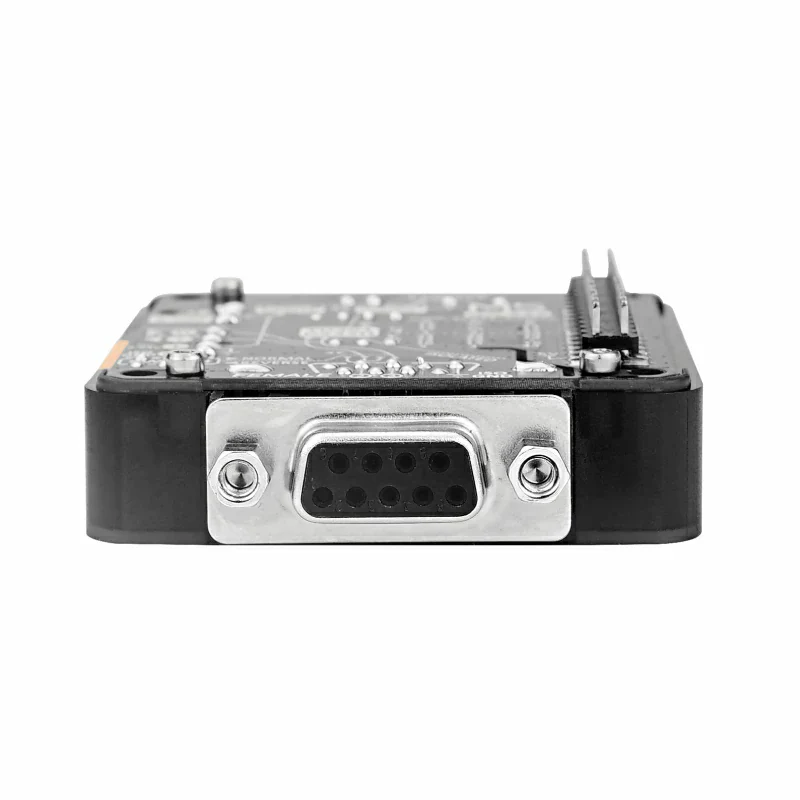

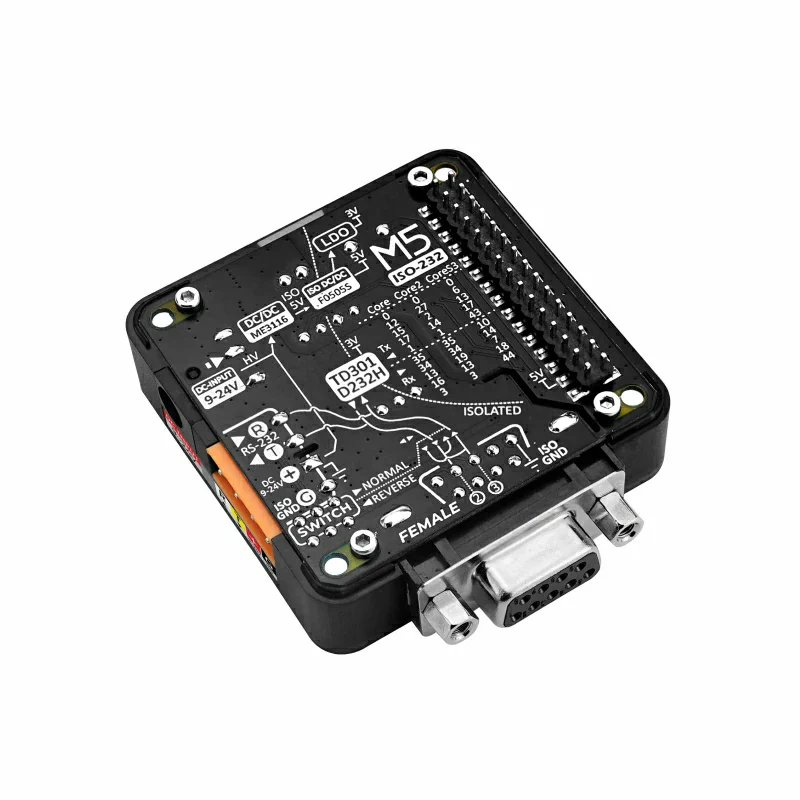

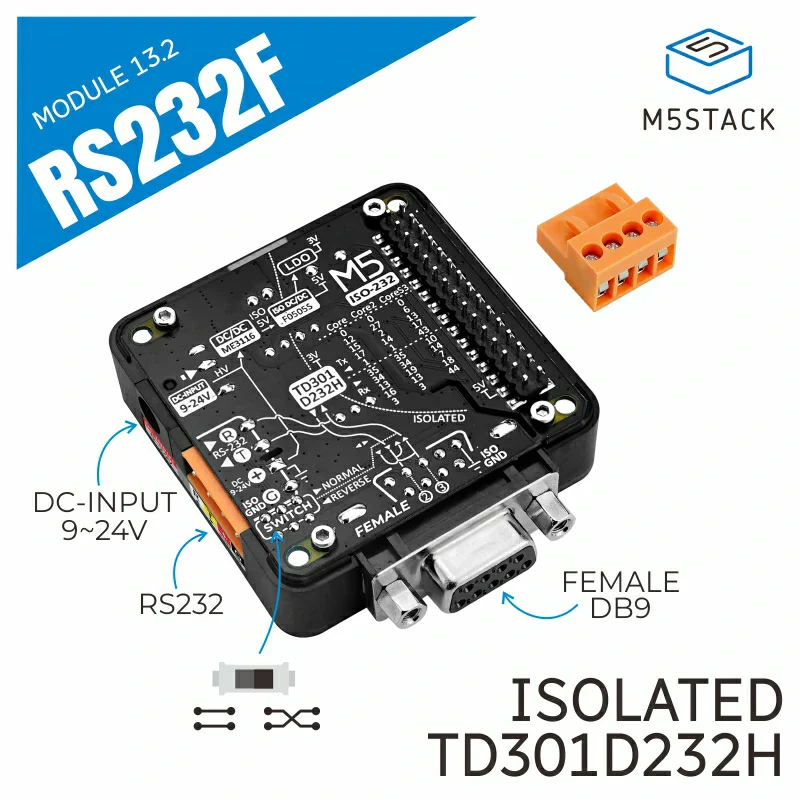

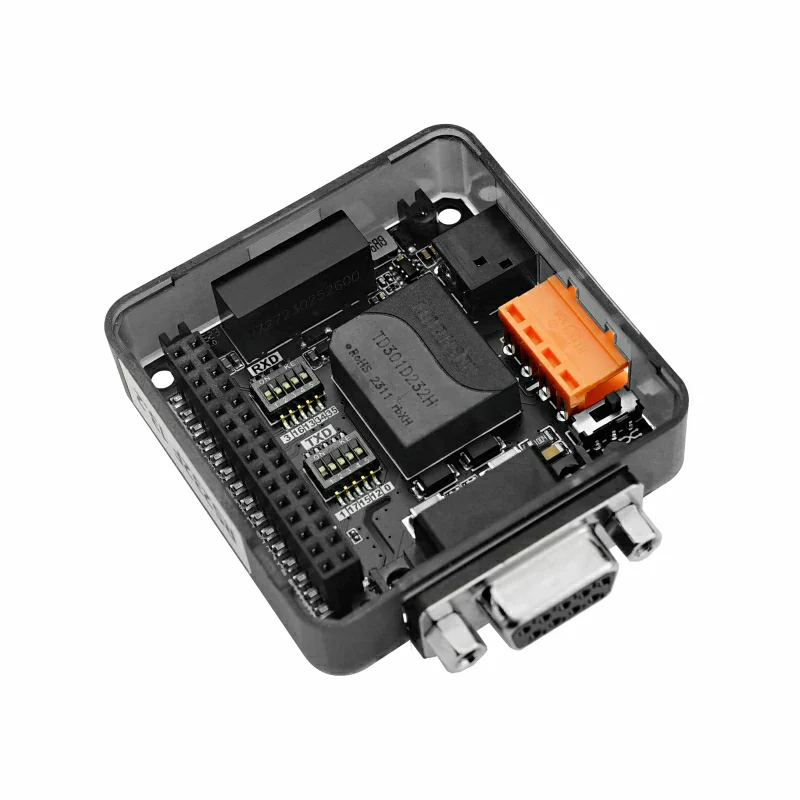

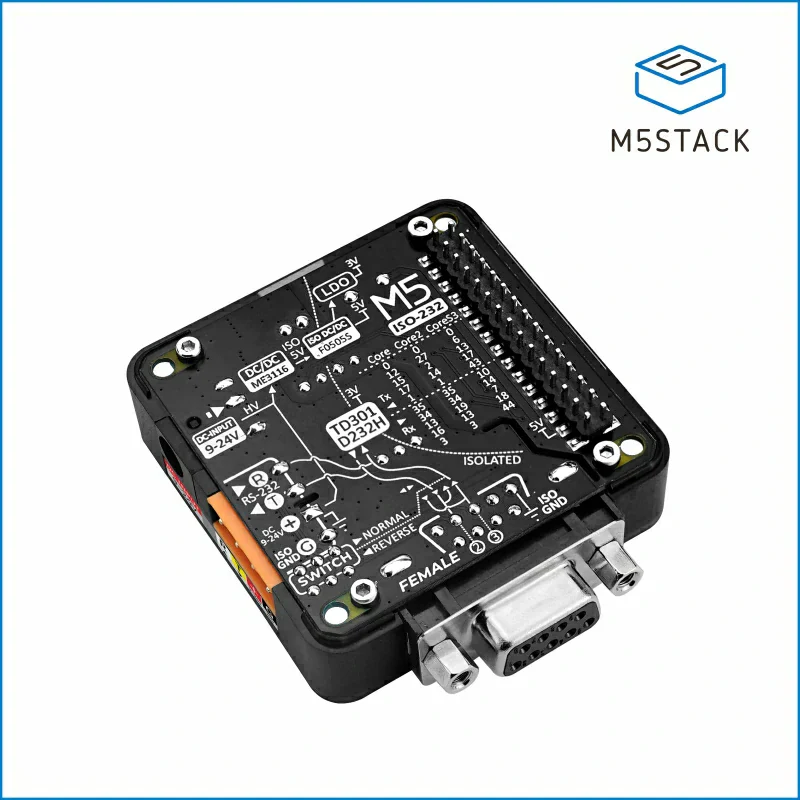

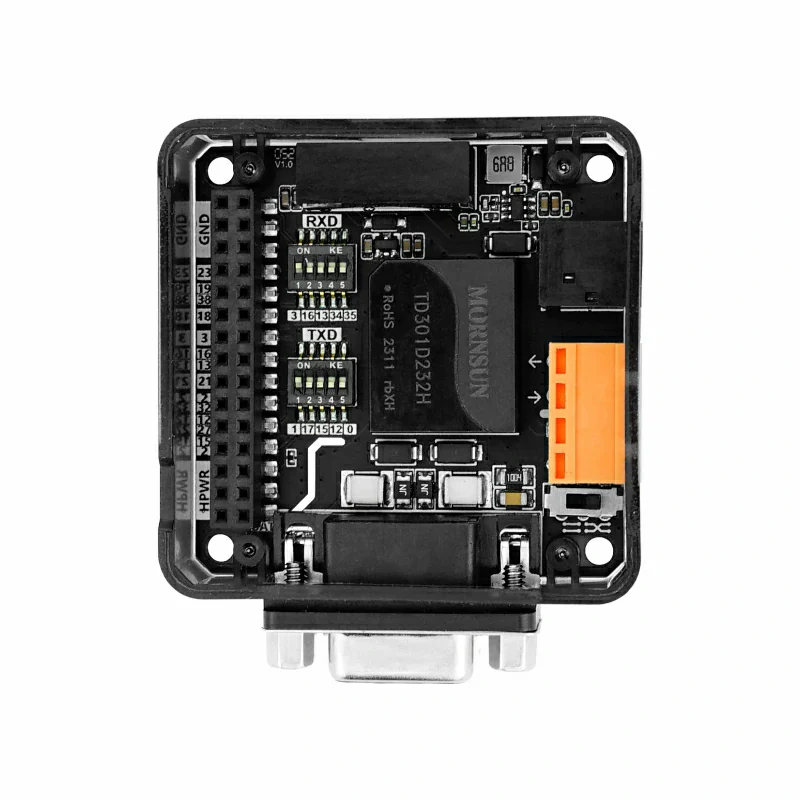

Module13.2 RS232F is an isolated RS232 serial communication expansion module. It uses the TD301D232H serial port conversion chip + female DB9 interface to achieve interface conversion between RS232 and TTL/CMOS logic level signals. The F0505S-2WR3 DC/DC power module is used to provide electrical and noise isolation. The toggle switch and rotary switch allow for switching between straight-through or crossover DB9 signal lines and serial interface switching, meeting different connection requirements. The module has a built-in DC power input socket and corresponding DC-DC circuit, which can provide power to the entire device. This product is suitable for industrial automation, instrumentation, medical equipment, and communication equipment fields.
Features
- TD301D232H serial port chip, supports full-duplex, fast and reliable
- F0505S-2WR3 electrical and noise isolation

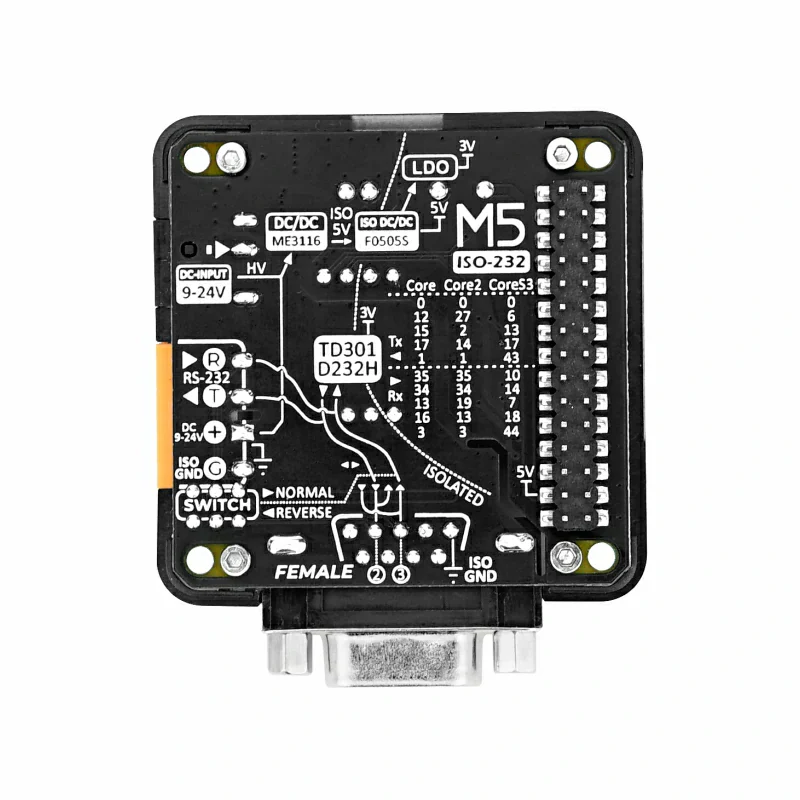

- Toggle switch and rotary switch for line sequence and GPIO switching
- Programming platforms: Arduino, UIFlow (updating)
Includes
- 1 × Module13.2 RS232F
- 1 x HT3.96-4P terminal
Applications
- Industrial automation
- Instrumentation
- Medical equipment
- Communication equipment
Specifications

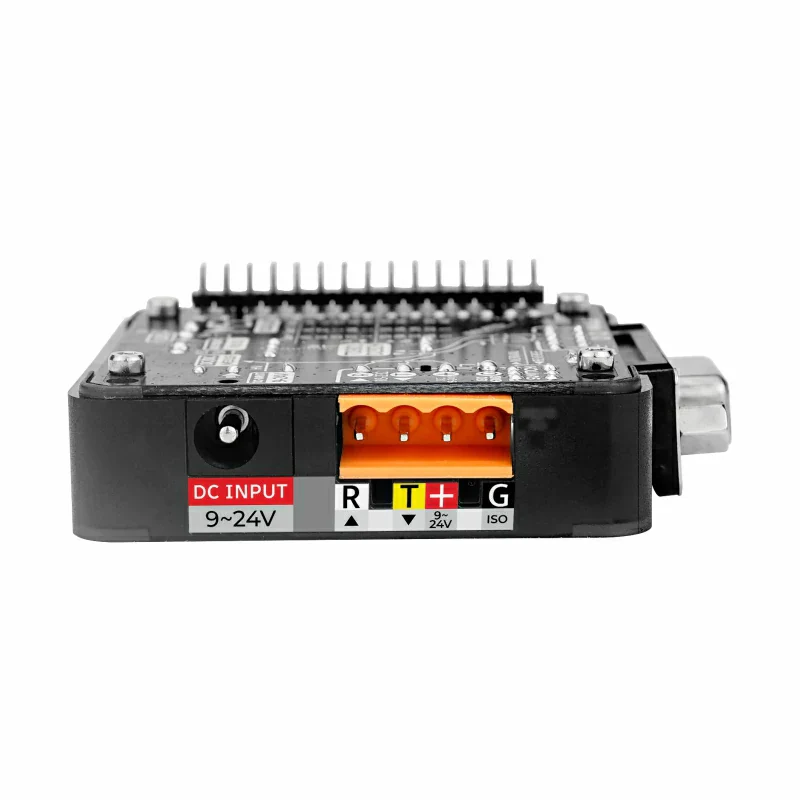

| Specification | Parameter |
|---|---|
| RS232 | TD301D232H |
| DC-DC Isolation | F0505S-2WR3 |
| Communication Speed | Up to 115200bps |
| Communication Method | DB9 female interface, supports full-duplex communication, interface conversion between RS232 and TTL/CMOS logic level signals |
| Operating Temperature | 0 ~ 40°C |
| DC Power Input Voltage | 9 ~ 24V |
| Product Size | 63.0 x 54.0 x 19.7mm |
| Product Weight | 32.2g |
| Package Size | 135.0 x 95.0 x 20.5mm |
| Gross Weight | 53.7g |
