Description

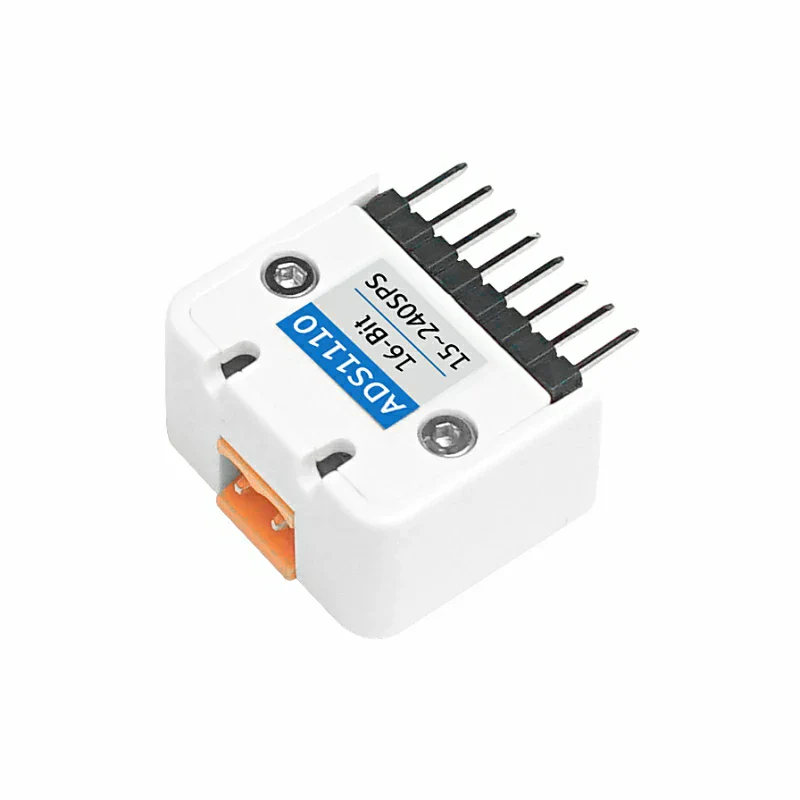

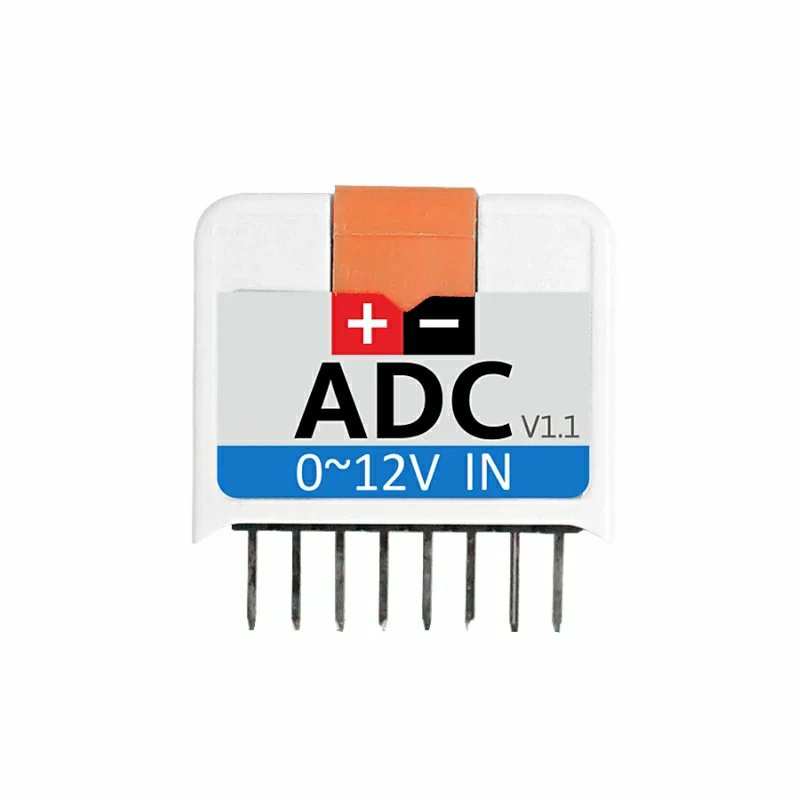

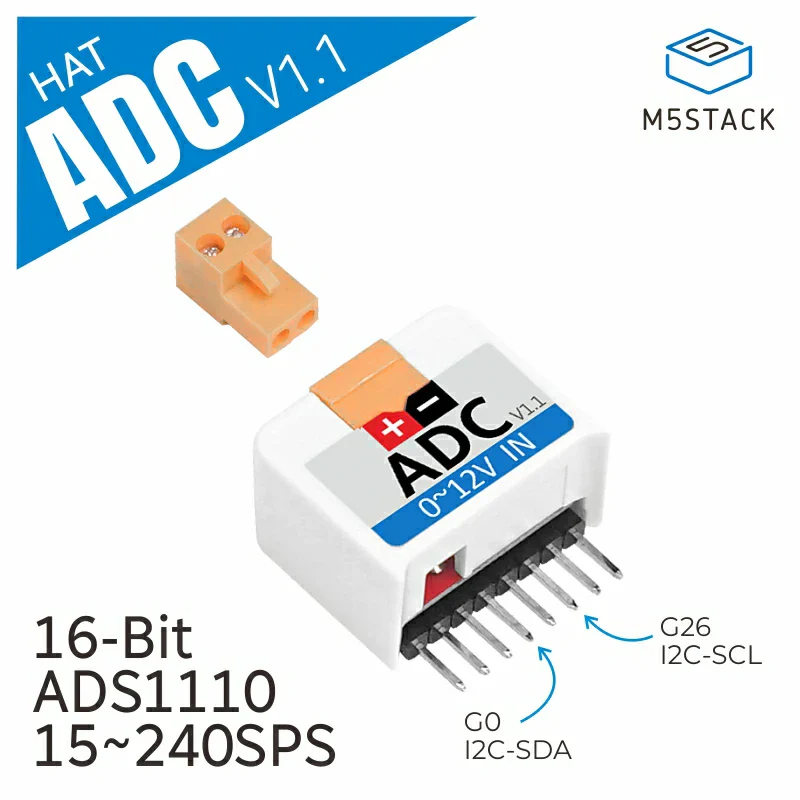

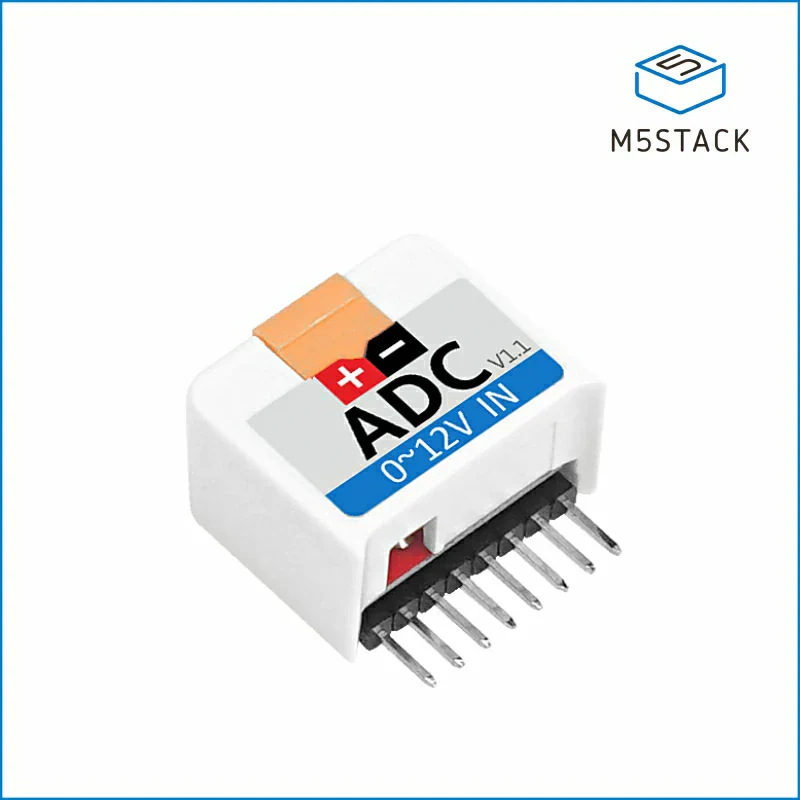

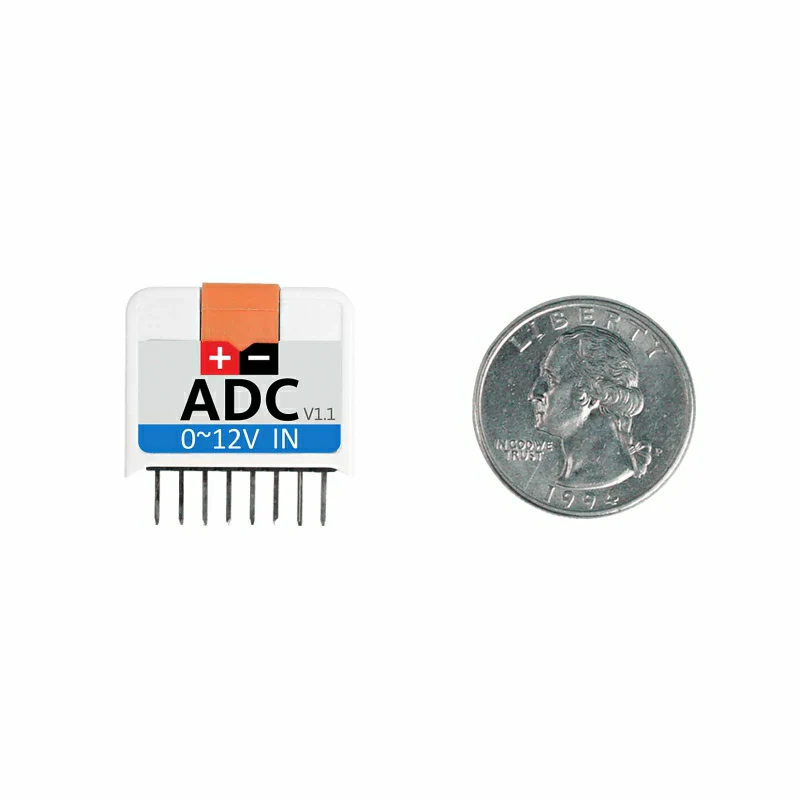

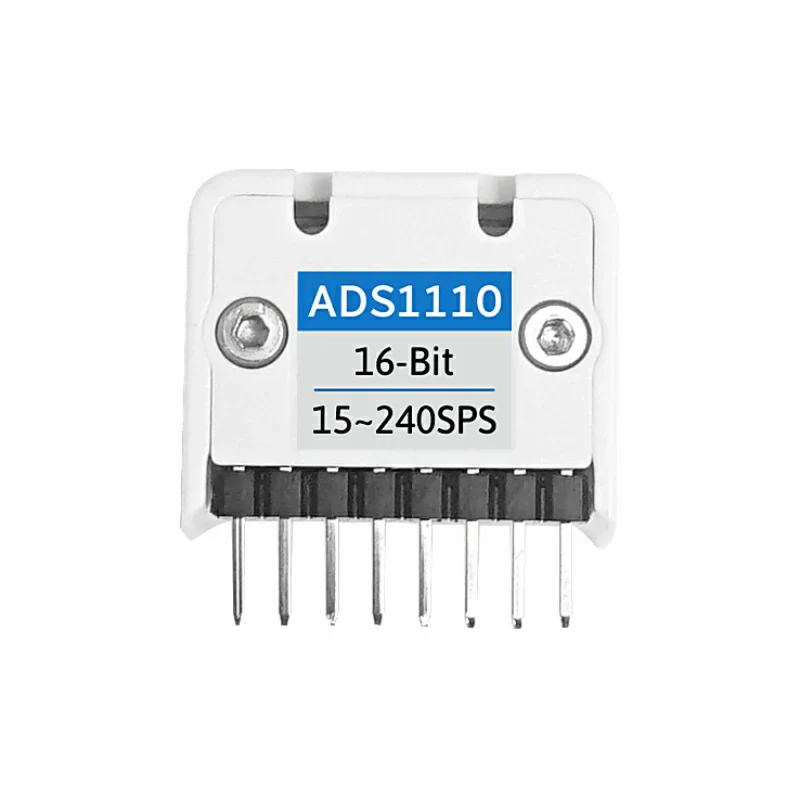

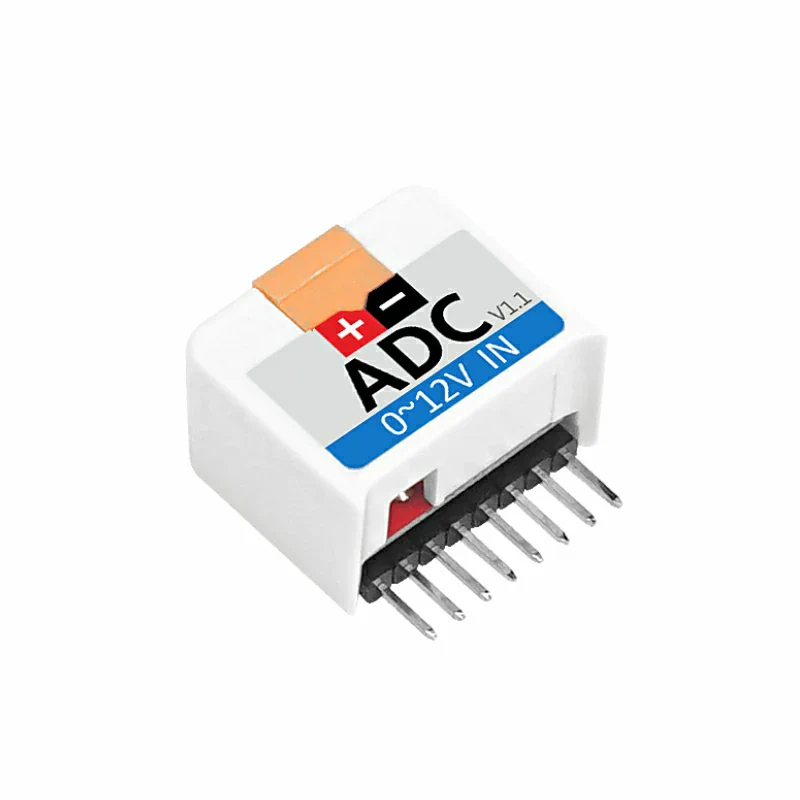

Hat ADC v1.1 is an AD conversion module compatible with M5StickC, integrating the ADC conversion chip ADS1110. It features full differential, 16-bit, self-calibration, and Δ-Σ modulation/analog-to-digital conversion, allowing users to easily obtain precise measurement results. The ADS1110 includes a Δ-Σ A/D converter core with adjustable gain, a clock generator, and an I2C interface, supporting a differential input range of -5 ~ +5V. However, with the design of additional peripheral circuits for this IC, the input range is limited to 0 ~ 12V.

Features

• Input voltage: 0-12V
• Development Platform: Arduino, UiFlow (Blockly, MicroPython)
• ADS1110:
  • 16-bit no missing codes
  • Continuous self-calibration
  • Single-cycle conversion
  • Built-in programmable gain amplifier (gain multipliers = 1, 2, 4, 8)
  • Internal system clock
  • Programmable data rate: 8SPS to 128SPS
  • Internal system clock
  • I2C interface @address: 0x48

Includes

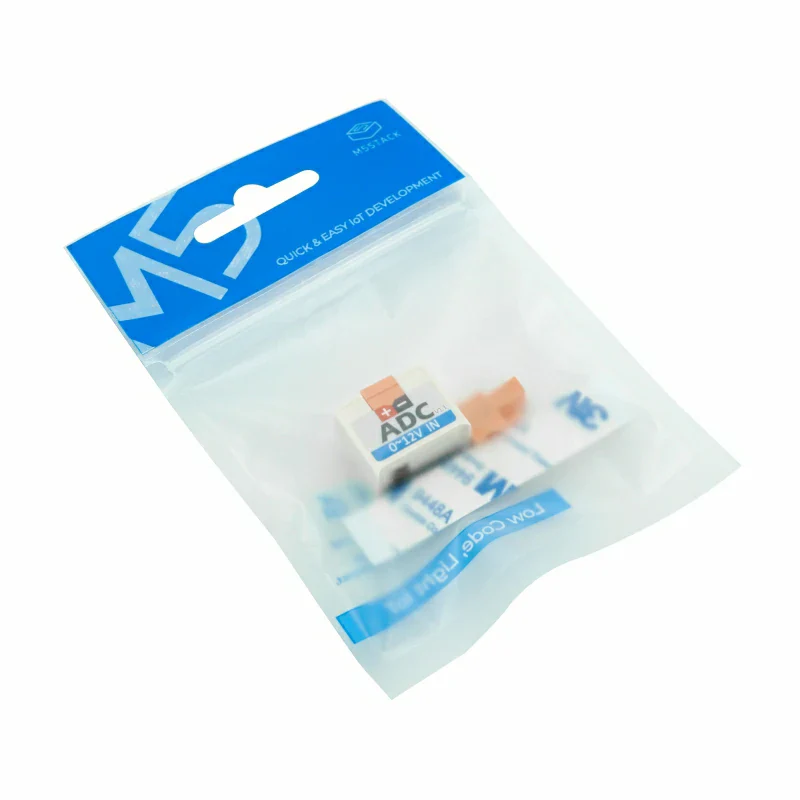

• 1 x Hat ADC v1.1
• 1 x HT3.96-2P Terminal

Applications

• Analog signal capture
