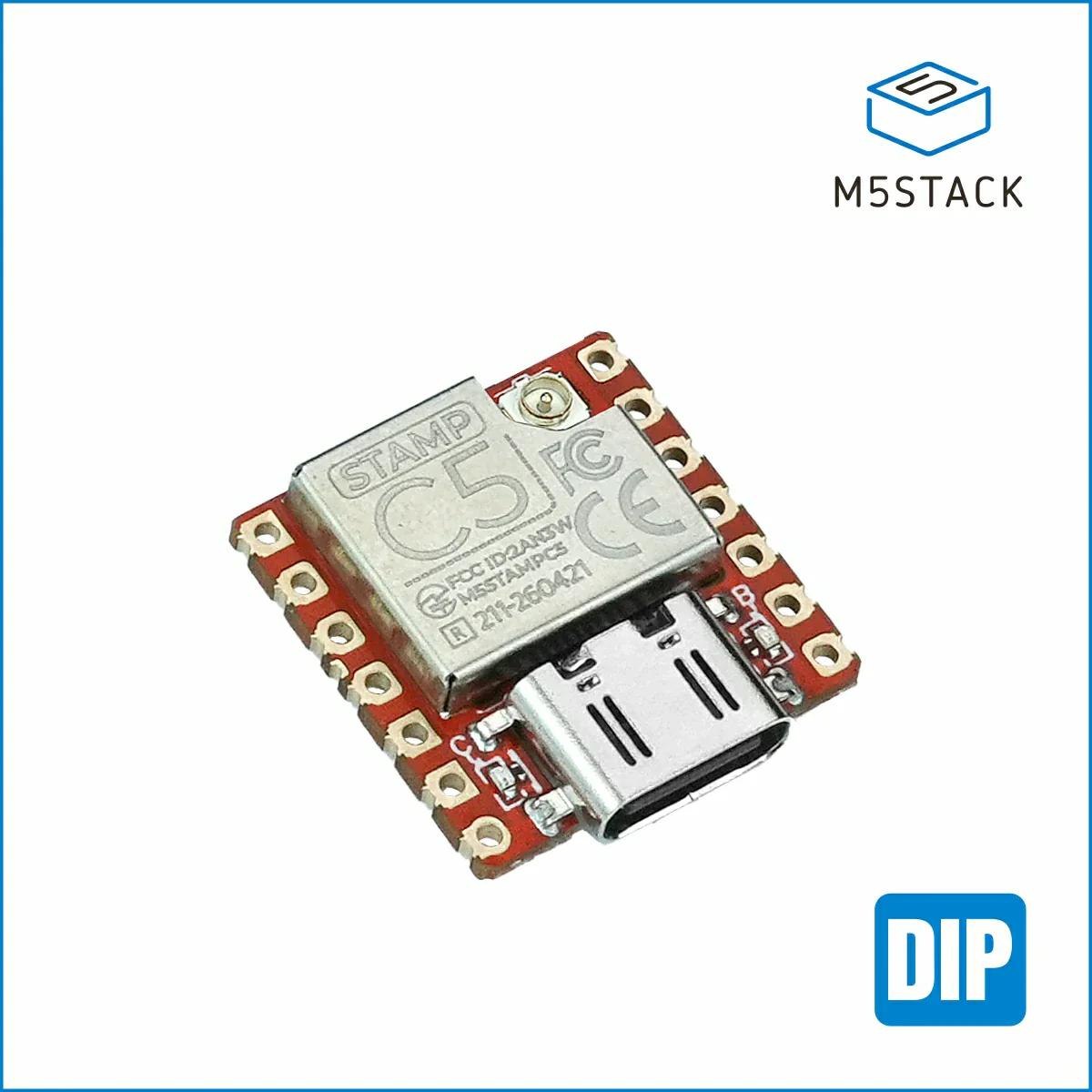

M5StampC5 DIP ESP32-C5 Wi-Fi 6 Module Overview

Stamp-C5 DIP is a highly integrated wireless connectivity module based on the Espressif ESP32-C5HF4, designed for IoT applications that require efficient and stable communication. It supports 2.4 & 5 GHz dual-band Wi-Fi 6, BLE 5, and IEEE 802.15.4 (Zigbee, Thread) multi-protocol connectivity, meeting device access requirements across different network scenarios. The module uses a RISC-V 32-bit single-core processor with a clock frequency of up to 240MHz, includes 4MB Flash, and integrates hardware resources such as USB Type-C, a battery power input, an FPC expansion interface, and an IPEX-1 antenna connector. The overall design adopts a 2.54mm pad pitch and includes 2 x 2.54-7P standard pin headers, making it easy to quickly connect various peripherals and expand functions. While ensuring connectivity performance and security, it helps developers complete prototype validation and product implementation more efficiently.

Wireless Connectivity and Header-Friendly Hardware Features

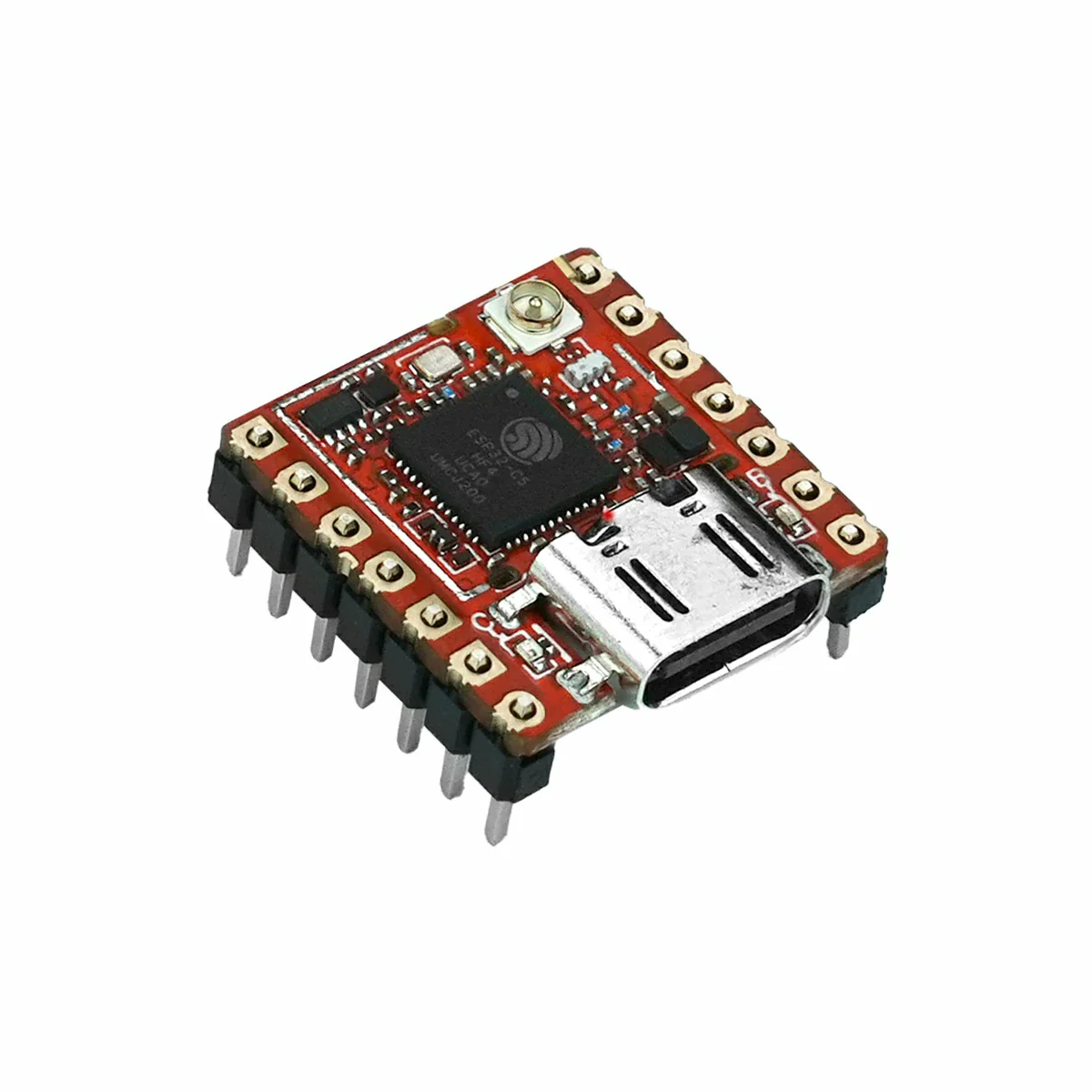

ESP32-C5HF4 Main Controller

• RISC-V 32-bit single-core processor, up to 240MHz
• 4MB Flash

Wireless Connectivity

• 2.4 & 5 GHz dual-band Wi-Fi 6
• BLE 5
• IEEE 802.15.4 (Zigbee, Thread)

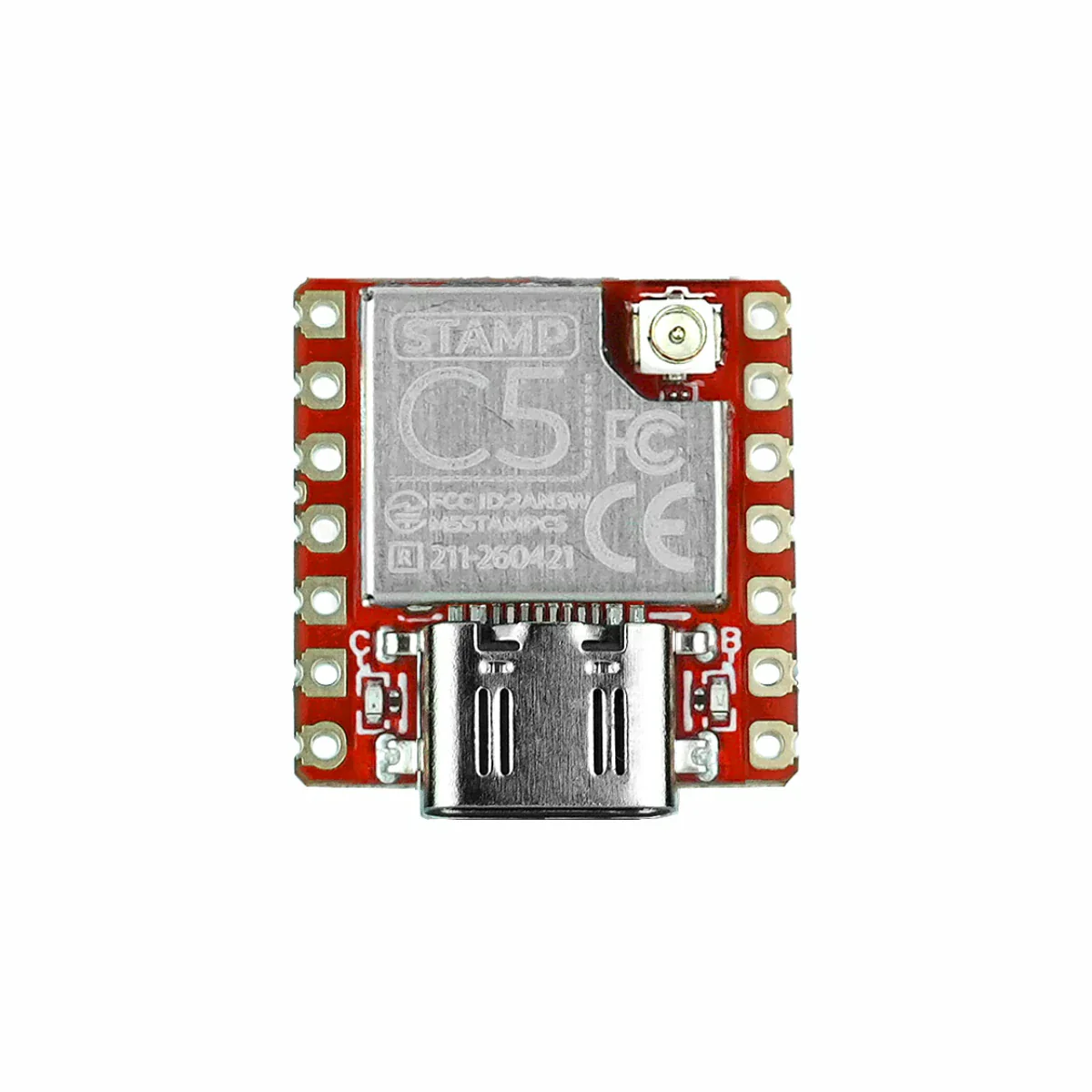

Interface and Hardware Design

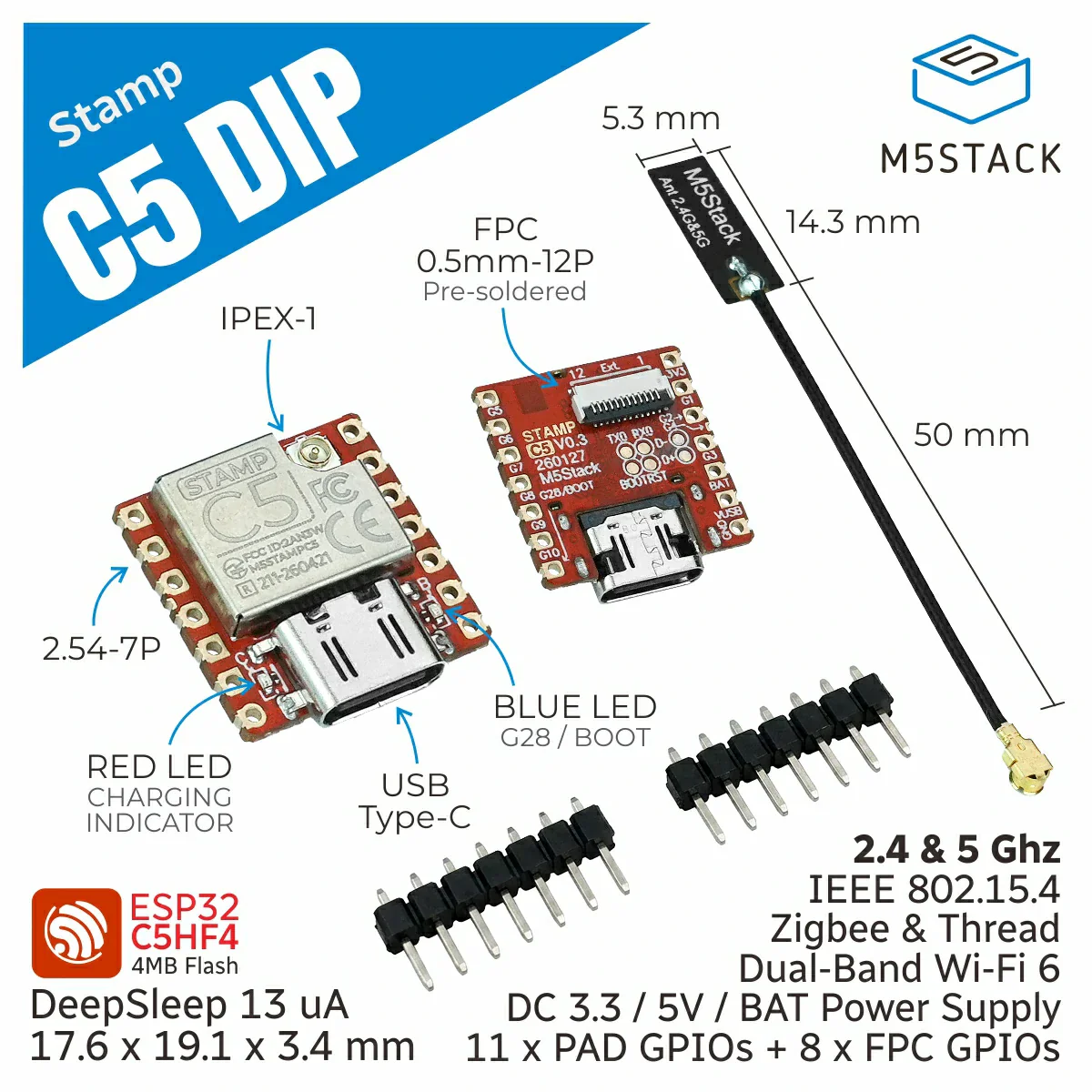

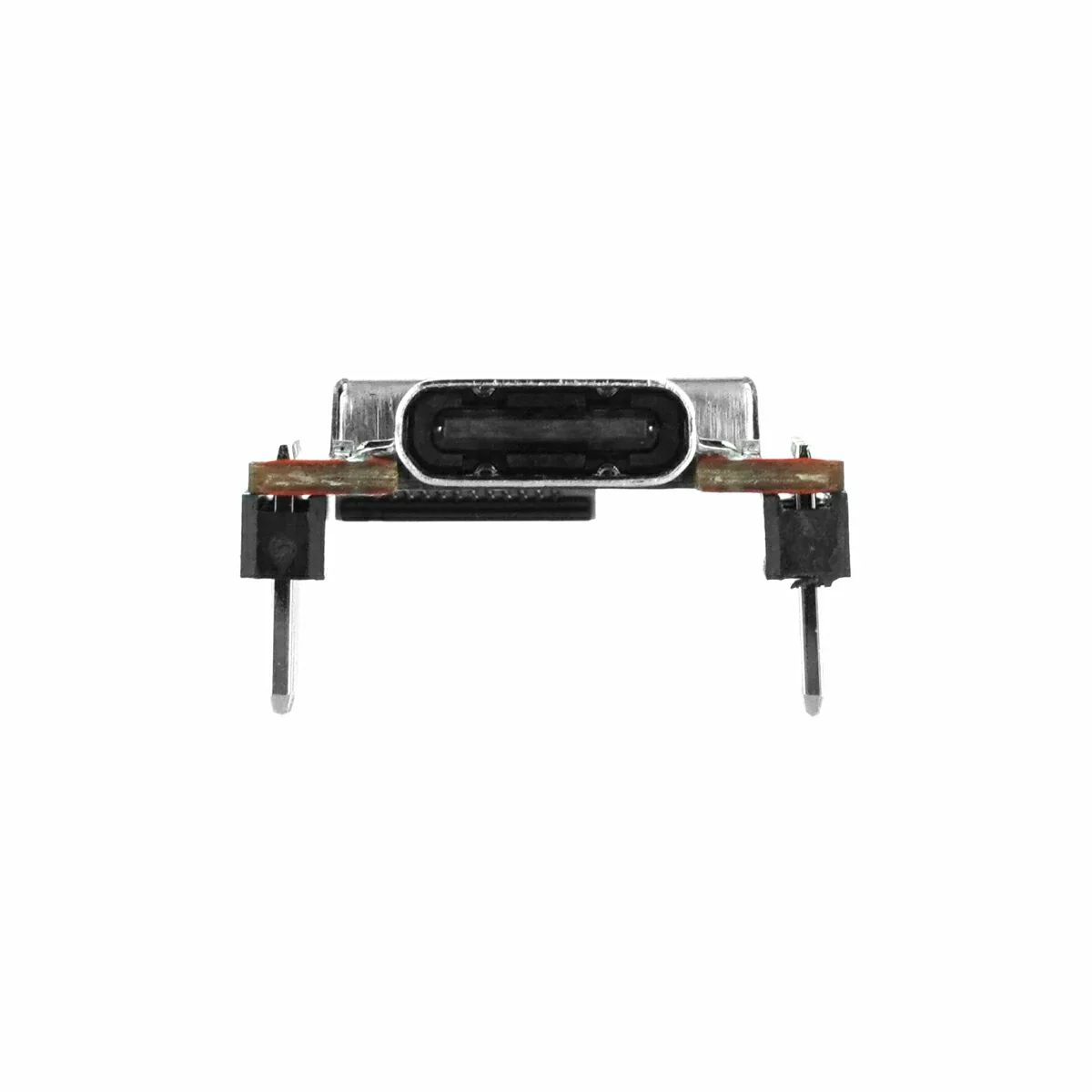

• USB Type-C
• DC 3.7V battery power input
• 2.54mm pad pitch

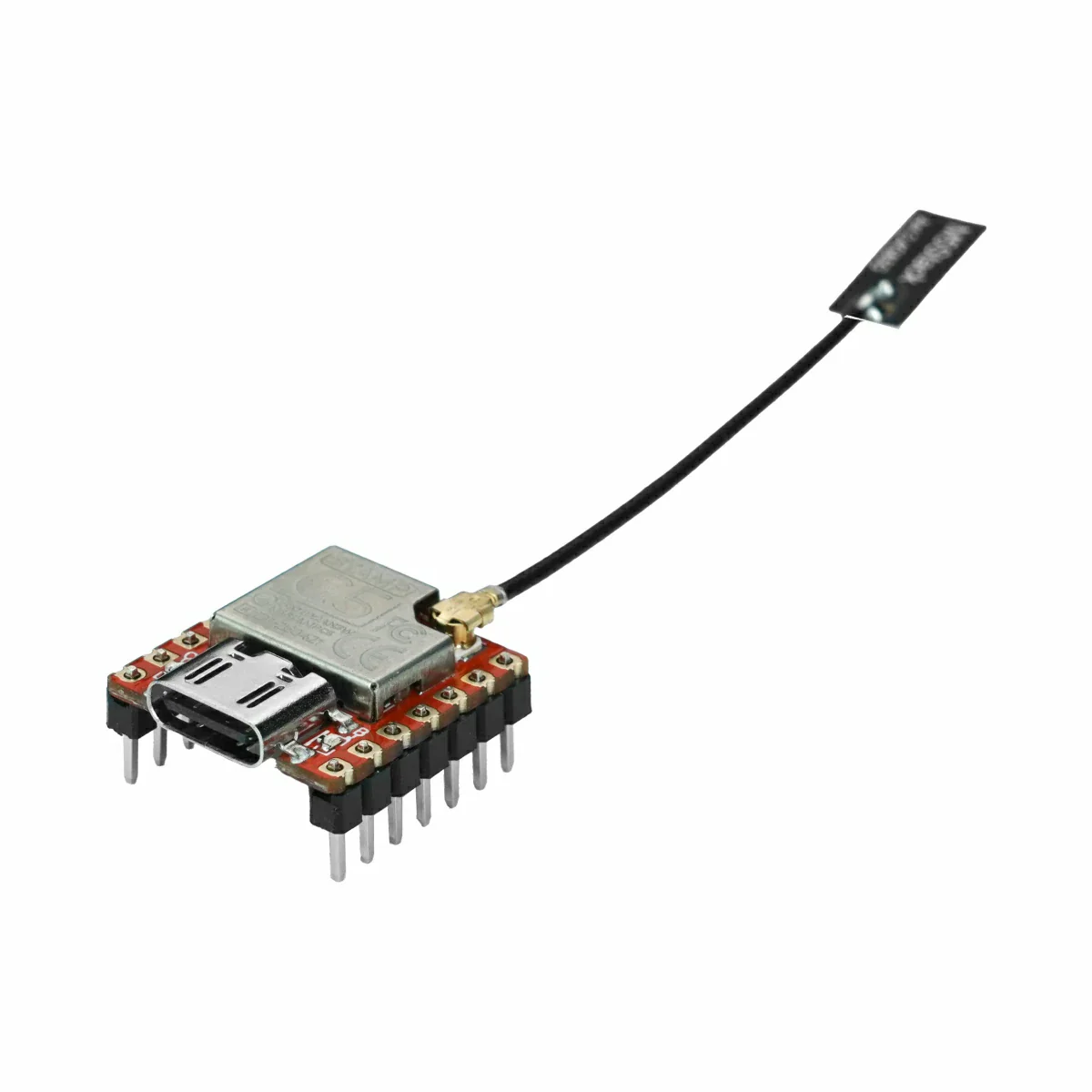

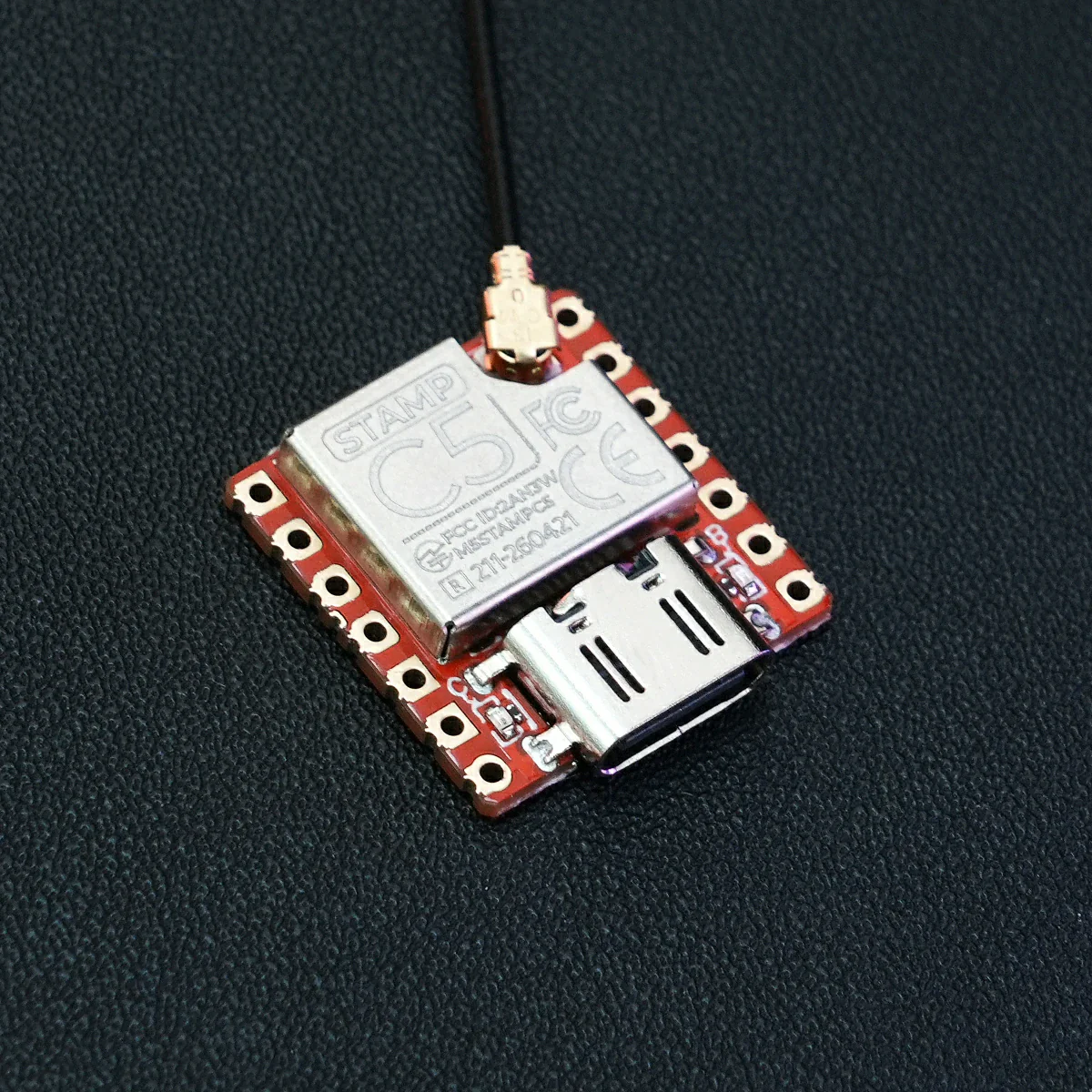

• IPEX-1 antenna connector

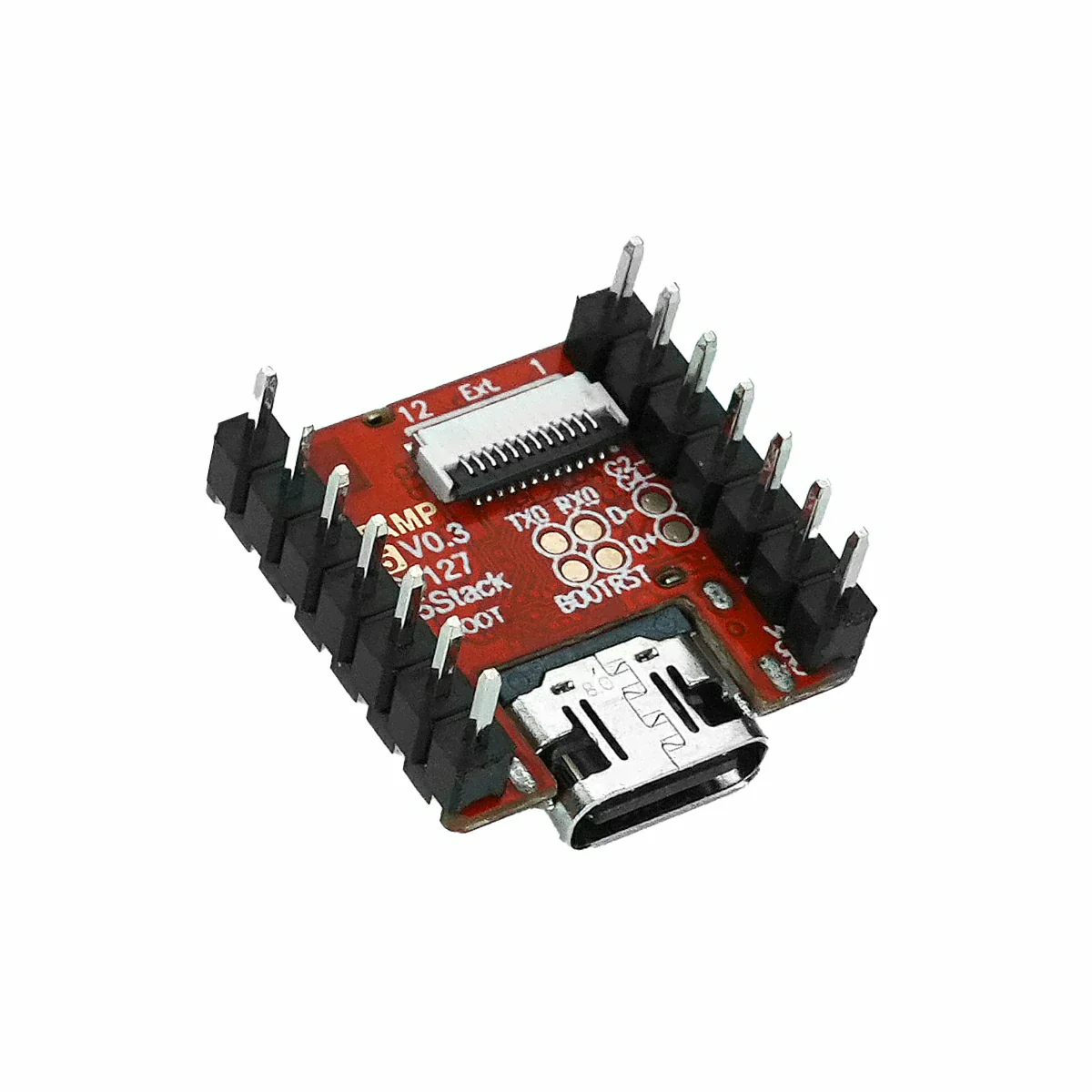

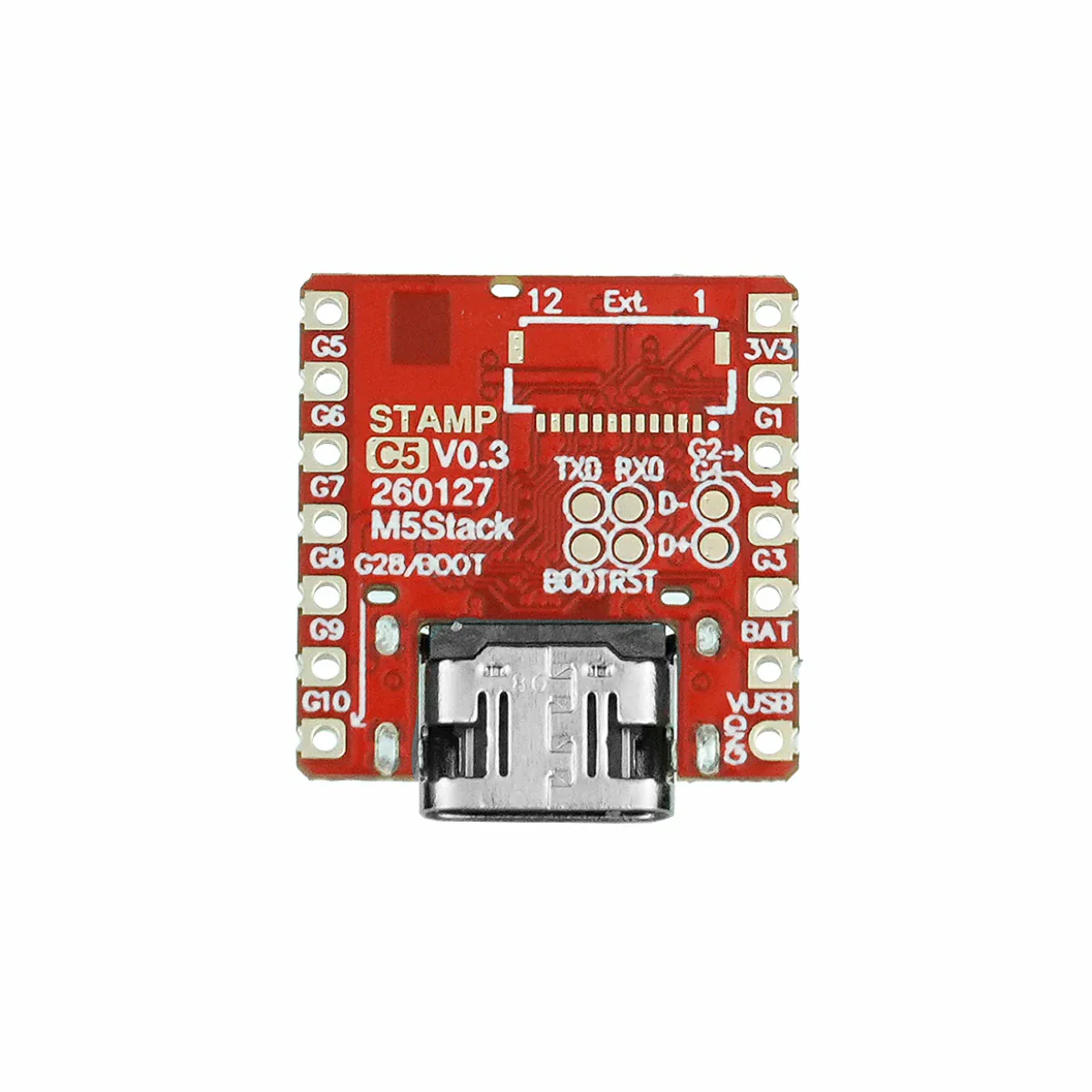

• Rear FPC 0.5mm-12P interface
• SGM40567-4.2XG/TR charging IC
• 2.4 & 5 GHz shared antenna design

Status Indicators

• RED: Charging indicator (blinks while charging; turns off when fully charged)
• BLUE: G28 / BOOT indicator

What Is Included with M5StampC5 DIP

• 1 x Stamp-C5 DIP
• 2 x 2.54-7P pin headers

IoT Applications

• Dual-band Wi-Fi 6 IoT devices
• Zigbee / Thread edge nodes
• Low-power wireless sensing devices
