[EOL] M5STACK Faces II Bottom Board

[EOL] M5STACK Faces II Bottom Board

Product Status Notice This product is EOL (End of Life).

Description

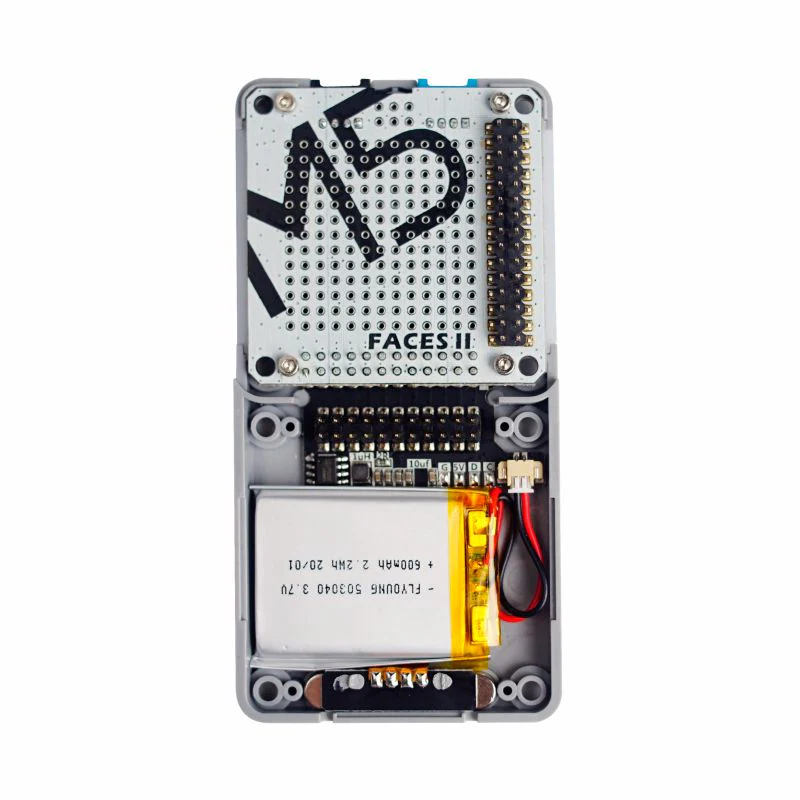

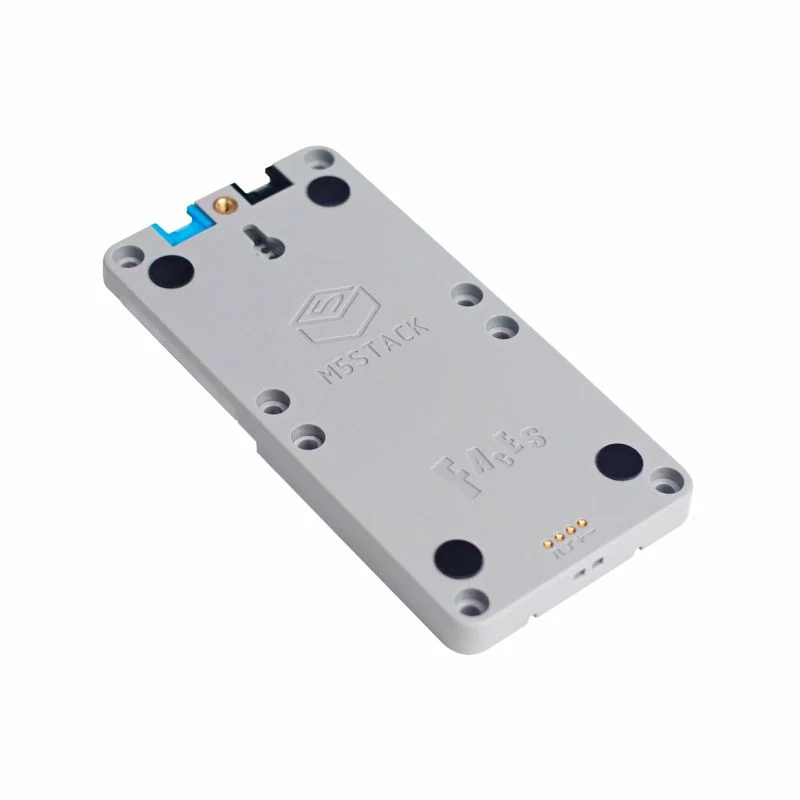

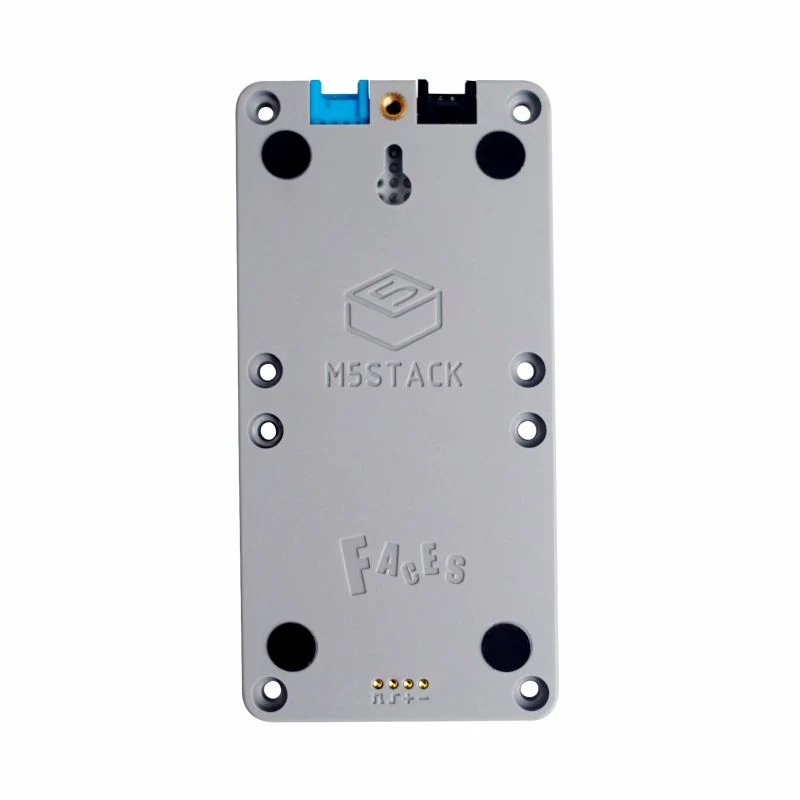

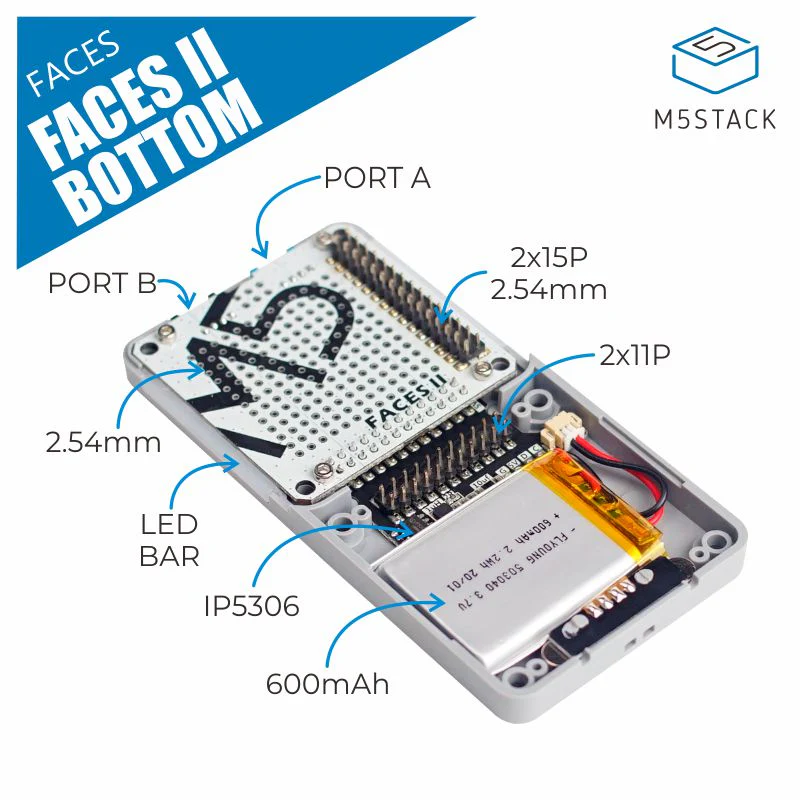

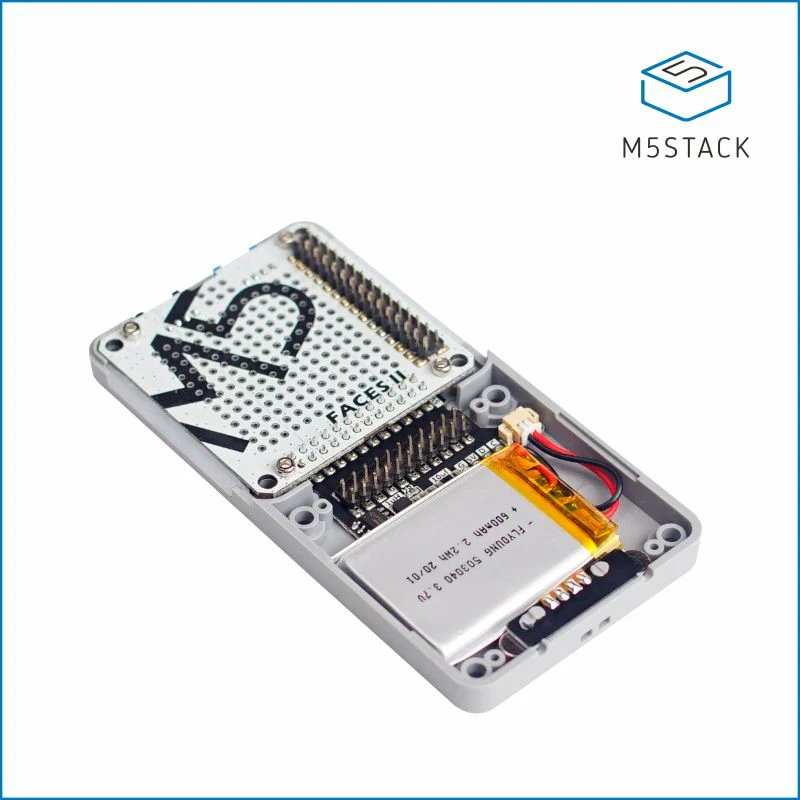

Faces Bottom-II is a FACES base with an RGB light strip and a compatible GROVE interface, compatible with all functional panels in the FACES Kit. The base connects to the host via the M5-Bus and communicates using the I2C protocol. The base is equipped with a built-in 600mAh rechargeable lithium battery and a power management chip, making it convenient for use as a handheld device. There are 5 RGB LEDs on each side of the base, and the top features PORT.B and PORT.C interfaces. The bottom of the base has Pogo Pin contacts for charging via a charging dock, and there are M3 screw holes and hanging holes on the top for easy fixation.

Compatibility There is a conflict between Core2's I2S DOUT and the RGB LED pins on the Faces Bottom-II base. Stacking the speaker or RGB LED lights may cause abnormal operation.

Features

  • Colorful LED light strip display (GPIO15)
  • Compatible with GROVE interface for easy connection
  • Compatible with FACES Kit panels
  • Rechargeable design on the back
  • Convenient for handheld use

Includes

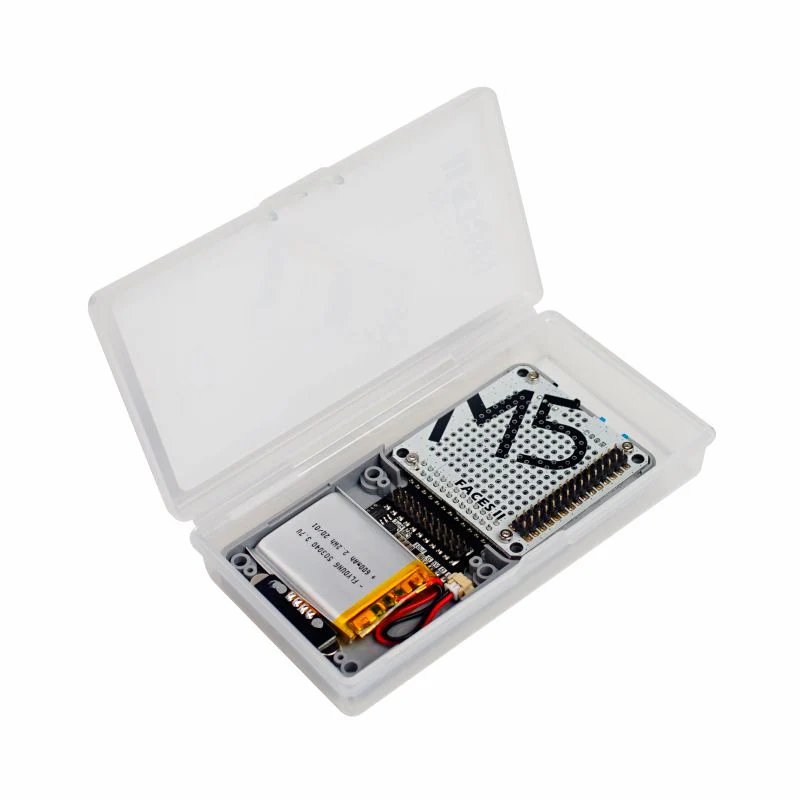

  • 1 x Faces Bottom-II

Specifications

Specification Parameters
Net Weight 43g
Gross Weight 77g
Product Size 108 x 54 x 19mm
Package Size 125 x 67 x 23mm

Learn and Documents

→ DOCUMENTS
$4.18

Original: $11.95

-65%
