[EOL] M5:Bit converter Board for Micro:bit
Description

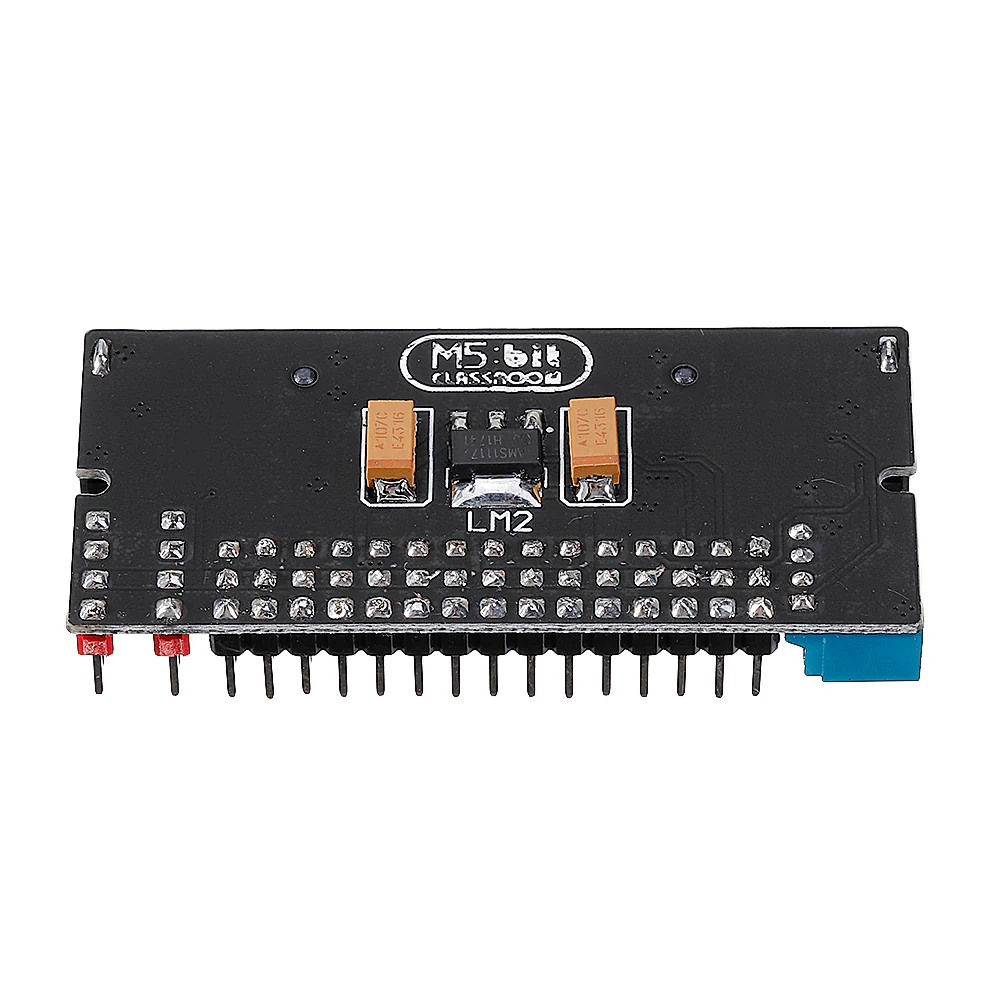

Unit M5Bit is an M5Core-Microbit serial communication adapter board. This adapter board connects the serial pins of the Microbit to the HY2.0-4P interface, enabling serial communication with the M5Core or other applications. Additionally, it extends the remaining IO interfaces, allowing connection to various hardware using DuPont wires.
Note:
By default, the Microbit pins P8 (TX) and P12 (RX) are connected to the HY2.0-4P interface.
Features
- Serial communication
- Pin expansion
Includes
- 1 x Unit M5Bit
Specifications
| Specification | Parameter |
|---|---|
| Net Weight | 14g |
| Gross Weight | 16g |
| Product Size | 57 x 21 x 11mm |
| Package Size | 62 x 22 x 7mm |
