ATOMIC PortABC Extension Base
Description

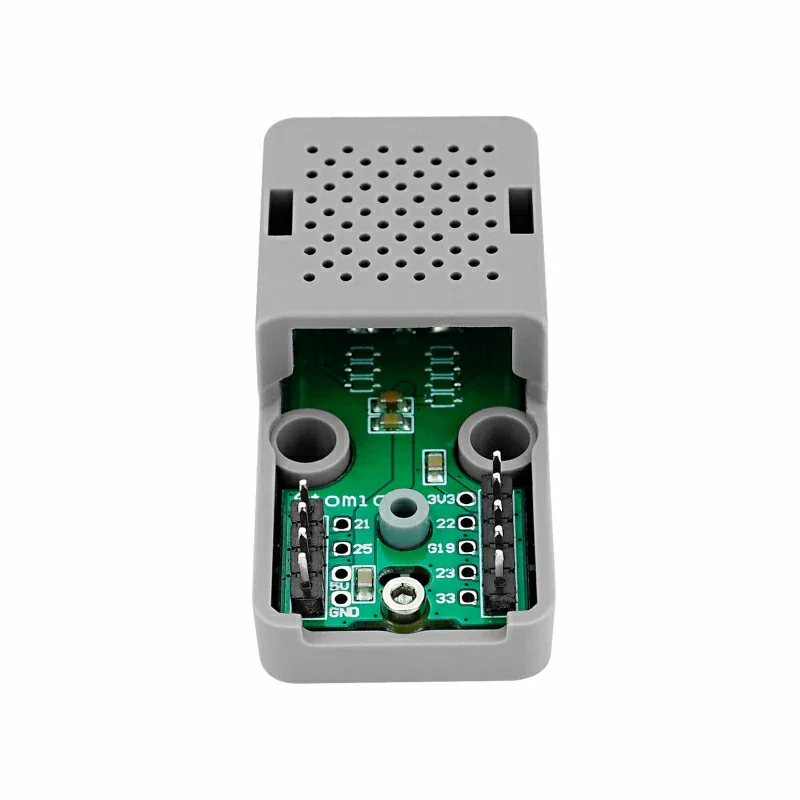

The Atomic Port ABC Base is a Grove port expansion base specifically designed for the ATOM series, allowing users to easily connect I2C, UART, GPIO type Unit expansion modules. The product offers multiple mounting options, such as hanging, LEGO connections, and screw fixation. It is suitable for building multifunctional mini-node controllers and other scenarios.
Features
- Compatible with PORT A/B/C (I2C/GPIO/UART)
- Compatible with ATOM series hosts
Includes
- 1 x Atomic Port ABC Base
- 1 x Pinout Diagram
Applications
- Multifunctional control nodes
Specifications
| Specification | Parameter |
|---|---|
| Supported Sensor Interfaces | I2C, UART, GPIO |
| Operating Temperature | 0 ~ 40°C |
| Supported ATOM Models | Atom-Matrix, Atom-Lite, ATOMS3, AtomS3-Lite |
| Product Size | 64 x 24 x 29mm |
| Package Size | 91 x 42 x 24.5mm |
| Product Weight | 5g |
| Gross Weight | 10g |
