2 x 15 PinHeader BUS Socket SMD for 13.2 Module (10 sets)
Description

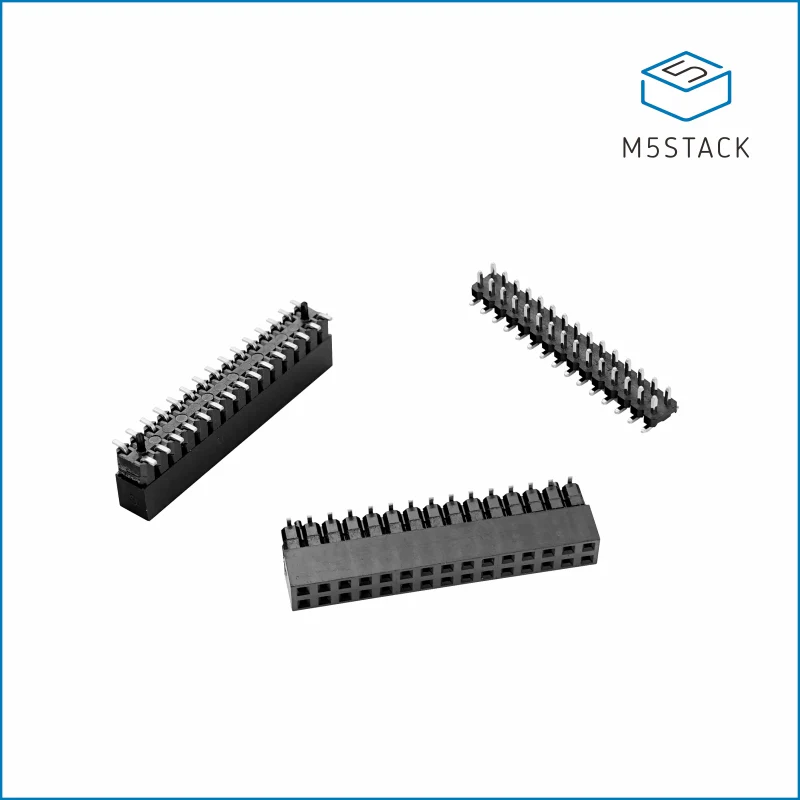

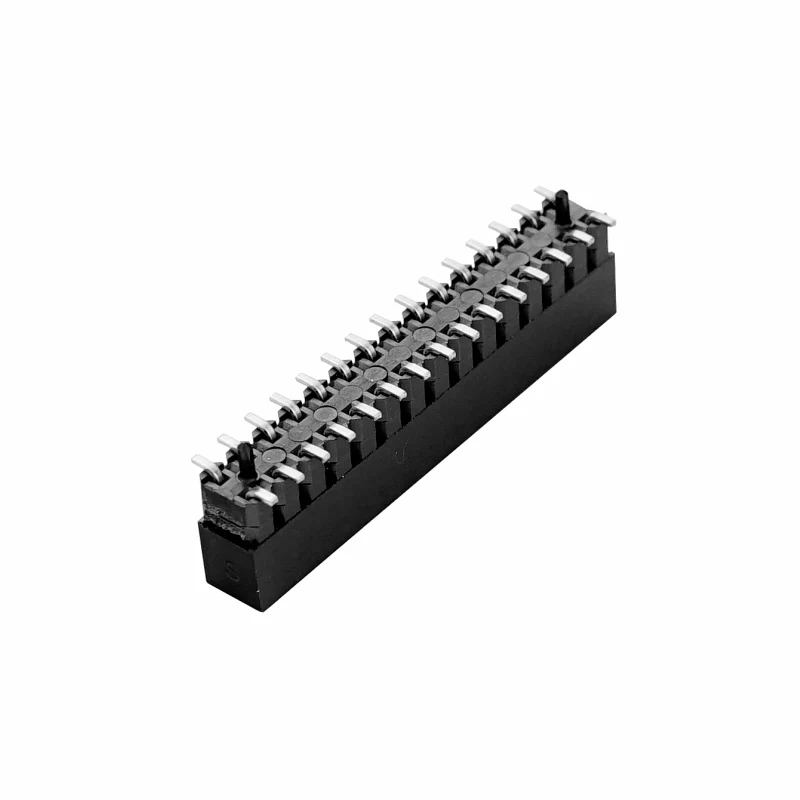

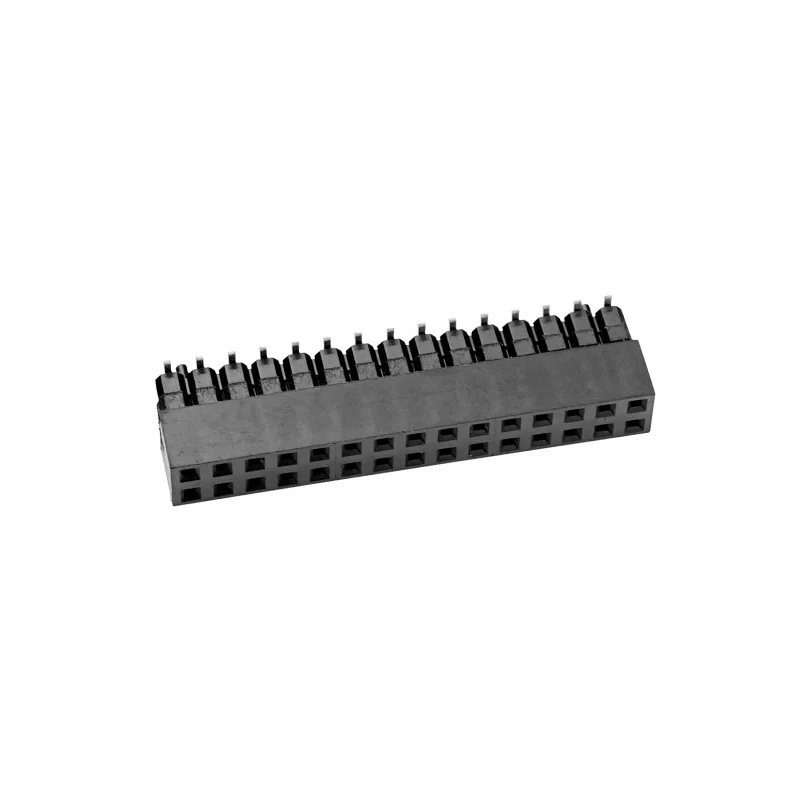

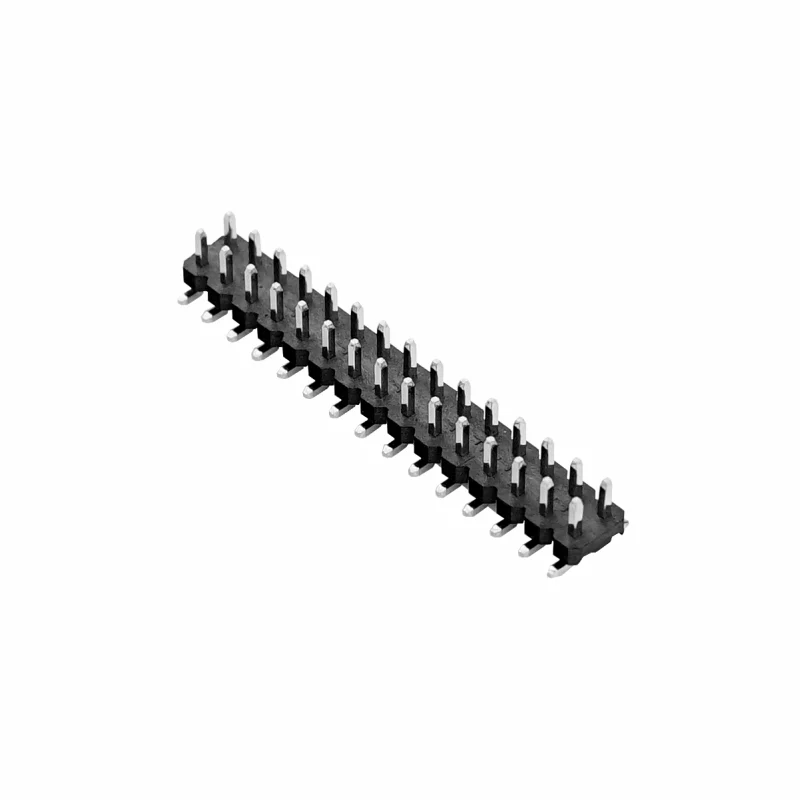

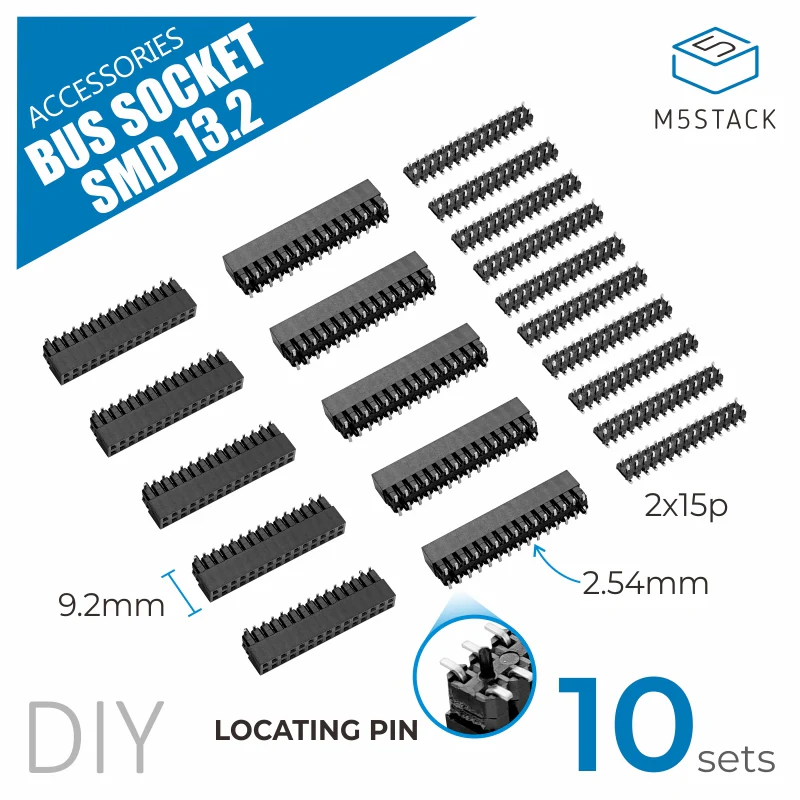

Bus Socket SMD 13.2 is a surface-mount header accessory kit, including 10 pieces of 2x15P surface-mount headers and pins. The spacing and number of holes on the header are consistent with the M5-Bus on the M5Core type main control, which can be used for DIY circuit design and connecting to the M5 main control.
Features
- Header 2x15 @ 2.54mm
- Pin 2x15 @ 2.54mm
- With positioning posts
Includes
- 10 x Bus Socket SMD 13.2 Headers
- 10 x Bus Socket SMD 13.2 Pins
Applications
- PCB DIY
Specifications
| Specification | Parameter |
|---|---|
| SMD Female Header | 2x15P |
| Header Plastic Height | 9.2mm |
| Pin Header Height | 3.0mm gold-plated, horizontal mount |
| Pitch | 2.54mm |
| Product Size | 9.8 x 39.0 x 5.0mm |
| Net Weight (Single) | 2.7g |
| Package Size | 138.0 x 93.0 x 6.0mm |
| Gross Weight | 49.0g |
