1.27 Header BUS Socket SMD for M5StampS3 (10 sets)
Description
The 1.27-Socket Kit for Stamp-S3 is a surface-mount socket kit designed for the Stamp-S3, with a pitch of 1.27mm. Users can integrate it into their PCB designs to meet various embedded requirements and expand functionality.
Features
- Surface-mount socket @ 17Pin/11Pin
- 1.27mm pitch

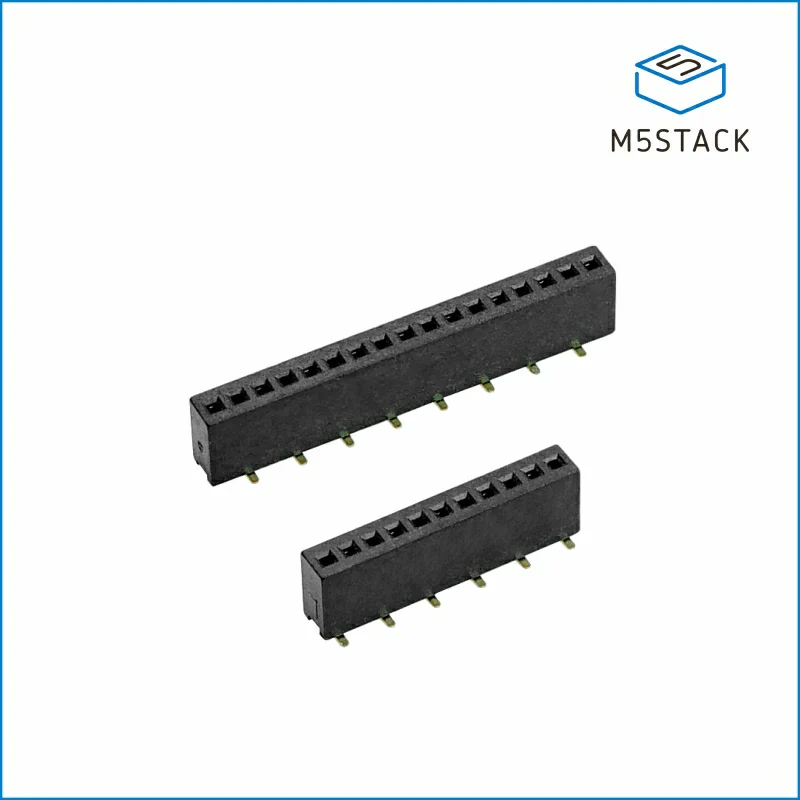

Includes
- 10 x Surface-mount sockets (1.27mm-17Pin)
- 10 x Surface-mount sockets (1.27mm-11Pin)
Applications
- PCB DIY
Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -40°C to 105°C |
| Soldering Temperature | 230°C (30-60 seconds) / 260°C (10 seconds) |
| Socket Type | 17Pin/11Pin |
| Socket Height | 4.6mm |
| Pitch | 1.27mm |
| Net Weight | 0.4g (17p) / 0.1g (11p) |
| Product Size | 22 x 4.6 x 3.5mm (For 17P), 14 x 4.6 x 3.5mm (For 11P) |
| Package Size | 136 x 92 x 13mm |
| Product Weight | 6.7g |
| Package Weight | 8.7g |
